Gypsum Block Producing Plant
1. brief introduction of the plant
1.1 production plan
1.1.1 production capability:
Output per hour:48㎡
Annual production capacity:345,600㎡
Note: above production capacity is calculated on basis of construction gypsum whose initial curing time is 以4~6min。
1.1.2 produced gypsum block speicfication
666mm(L)x500mm(W)x80(or 100/120/150)mm(T),solid/hollow block, 18 pcs/mould
1.2 main technical specification
1.2.1 quality standard
Produced gypsum block comply with National standard of《Gypsum Block 》, standard refernece(JC/T698-2010):
No |
item |
unit |
value |
1 |
Gypsum block length |
mm |
666±3 |
2 |
mm |
500±2 |
|
3 |
Gypsum block thickness |
mm |
80±1.0 |
4 |
Gypsum block 2h bending strenth |
Mpa |
2.0 |
5 |
Gypsum block 2h compression strength |
Mpa |
3.5 |
1.2.2 Main producing workshop size
Plant |
Necessary land area |
height |
Producing workshop |
100㎡ |
≥6m |
Curing yard |
60000㎡ |
Shed or open air |
1.2.3 working shift plan
Working day |
300 days/year |
Shift |
3 shift per day |
Working time |
24 hours/day |
1.2.4 manpower requirment
No |
job |
person/shift |
shift/day |
person/day |
1 |
forming |
1 |
3 |
3 |
2 |
curing |
1 |
3 |
3 |
3 |
packing |
1 |
3 |
3 |
4 |
total |
3 persons |
3 shifts |
9 persons |
2. producing process description
2.1 weighing and dosing
2.1.1 construction gypsum material
Outsourcing qualified construction gypsum material is, by lift and silo’s screw conveyor, charged into raw material silo. The raw material silo has upper/lower level indicator and two discharging outlet on its bottom. The gypsum material is fed, by screw conveyor underneath the silo, into the weighing dosing hopper. When the weight of the charged gypsum material reach at the target weight value, the screw conveyor stop.
2.1.2 water
The water from the supply line, through the solenoid valve, enter into the water weighing dosing tank. When the weight of water into the tank reach at the target value, the solenoid valve shut off. The water tank equipped with metering system.
2.1.3 gypsum block forming
The dosed gypsum is, by fast screw conveyor, charged into mixer. Water is , through pneumatic valve by gravity, charged into mixer. After high speed mixing, the mixed consistent gypsum slurry is poured into the moulding machine for forming. After short time and when the gypsum slurry get certain strength, the tongue or groove is made with the hydraulic scrapper. Then the gypsum blocks are pushed out from the moulding cavity by hydraulic device. Then, by 2D space fixture jig, pick the blocks up and placed on curing cycling pallet.
2.1.4 curing/drying section
Formed gypsum block can be naturally drying or cured in a drier, which process
up to client’s decision.
2.1.5 finished product packing and storing
The dried gypsum block can be packed manually or mechanically. Which packing process to be adopted depends on the client. We can supply full automatic packing machine at additional cost, it is not included in the offer.
3. machine list and character of the gypsum block producing line to be supplied
item |
Remark |
power |
Feeding conveyor |
Screw feeder, feeding consistently (about 5 to 9m length) |
5.5—7.5kw |
Gypsum dosing system |
※ steel plate made dosing hopper ※ hanging pulling type sensor ※ fast discharging in pneumatic butterfly valve 40S, it can enhancethe flowability of slurry with same ratioof water/gypsum, and decrease the material build up onto the mixer wall inner.(diameter about 1m and height 1.5m) |
|
Water dosing system |
※ steel plate made tank. ※ Water discharging control and response fast. ※ Special weighing sensor to control water dosage automatically. (diameter about 0.8m and height 1m) |
|
Fully enclosed/ automatic cleaning/dust free mixer |
※openable cover, with rubber seal, to avoid material spill out. ※pneumatically close and open the front dust-stop cover ※unique“breath port”design guarantee material charging smoothly. ※1200r/min high speed mixing guarantee slurry consistent ※shower type water charging can wash inner wall . ※after material charging, secondary mist spraying shower water help prevent dust spill out. ※big tilting angle operated by hydraulic guarantee slurry can be poured completely. ※machine frame made with steel rectangle tube make the structure enough rigid. (about 2.5m * 1.5m * 1.5m) |
9kw
|
gypsum block forming machine |
※ Steel plated with hard chrome, precise shape and dimension. ※ Steel forming scrapper, pneumatically lift up and down, guarantee the produced gypsum block with perfect upper surface, and keep no material scrapped into foundation pit, therefore decrease the labour intensity of worker. ※ With two side gear device, guarantee the scrapper run synchronously and without deflection ※ Bottom mould( and core mandrel) adopt double seal, guarantee no slurry leakage. ( core mandrel plated with hard chrome and no rust) ※ The whole structure design is optimized. ※ The joint surface is precisely machined, guarantee the whole machine is accurate. (about 2.1m * 1.2m * 2.3m) |
|
Automatic space fixture jig |
※specially made ultrathin pneumatic cylinder can flexibly pneumatically clamp the gypsum block and pick up them without damage the product. ※frequency converter control precisely the position. ※adopt excellent gear box, pneumatic elements to guarantee the reliability of the plant.
|
4kw
|
空间夹具分两种,第二种是机械式夹具,发明专利产品,操作简单、方便实用,可供贵公司进行考察、选择。 (约2.1米x1米x0.5米) |
||
Hydraulic system |
※ adopt excellent hydraulic elements. ※groove scrapper hydraulic adopt gear/rack meshing technology, to guarantee the hydraulic cylinder synchronization. ※ ejecting cylinder precise positioning to meet demanding of various block height production. ※ high reliability, meet demanding of complex environment at site. ※ with water cooling, to gurantee the normal works of the hydraulic power pack.
|
22kw
|
automatic electric control system |
※ electric elements adopt Schneider and/or Chint product.※ special secondary programmable function. The site responsible can, by touch, change raw material formula, weighing tare, the parameter of time intervals between processes, etc, to increase the producing efficency, and less the professional technical demanding of the maintenance worker. ※ standard GGD control cabinet, convenient local operating box. |
|
stacker manipulator |
※ our patent product, mechanically operated, easy operation, guarantee gypsum block perfect. ※ 5 or more layers of gypsum block can be stacked, save area and labour. |
Mechanical type |
Note: |
Travelling rail, etc, maximum part length is 10m |
|

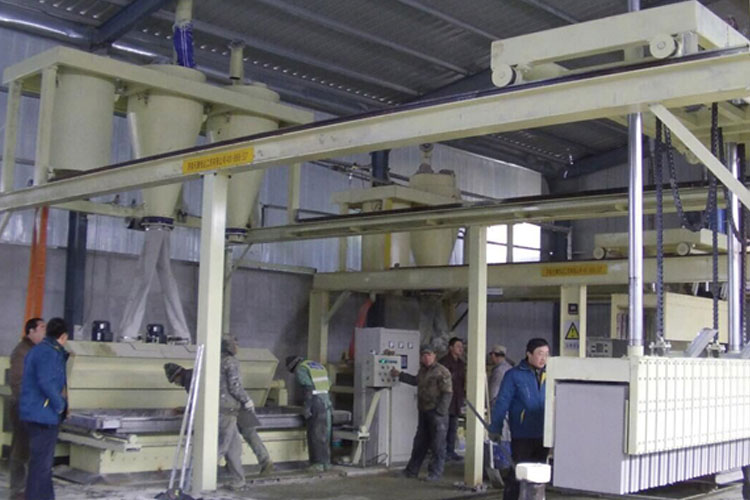

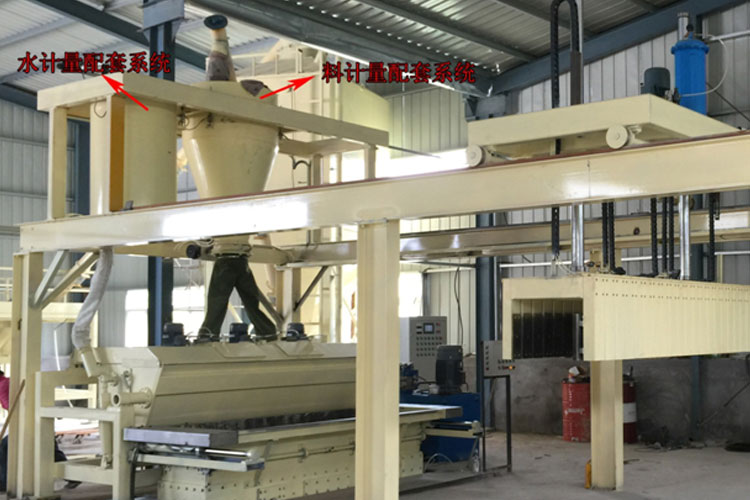

Pictures at site
5. price of the gypsum block producing line
model |
Gypsum block Nos per mould |
Leading time |
Approximate weight |
Price FOB Chinaport |
666x500x80mm,solid |
18 |
60 days |
18 ton |
US$72,000 |
Note: the supplied need 1x40HQ for ocean shipping

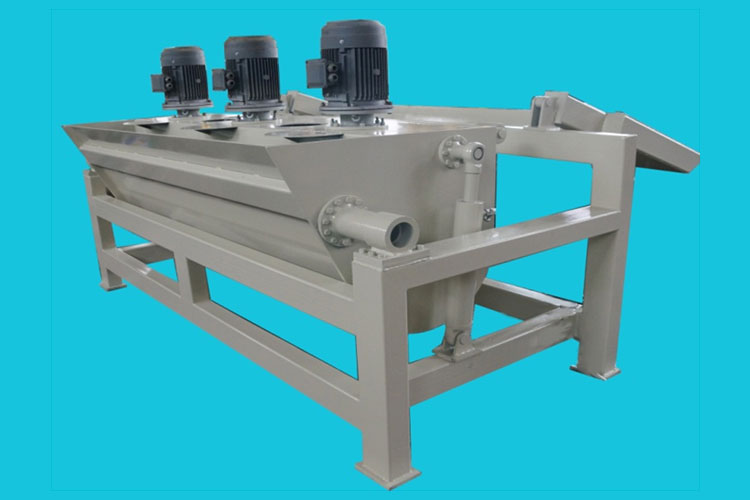

Fully enclosed dust-free mixer

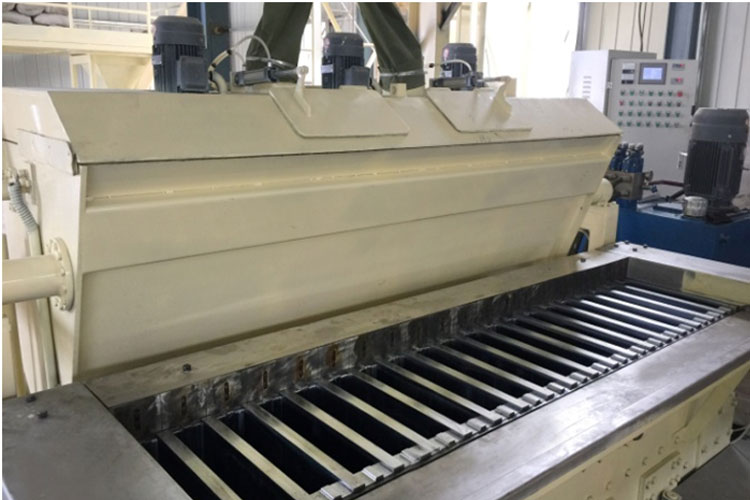

high accuracy gypsum block forming machine

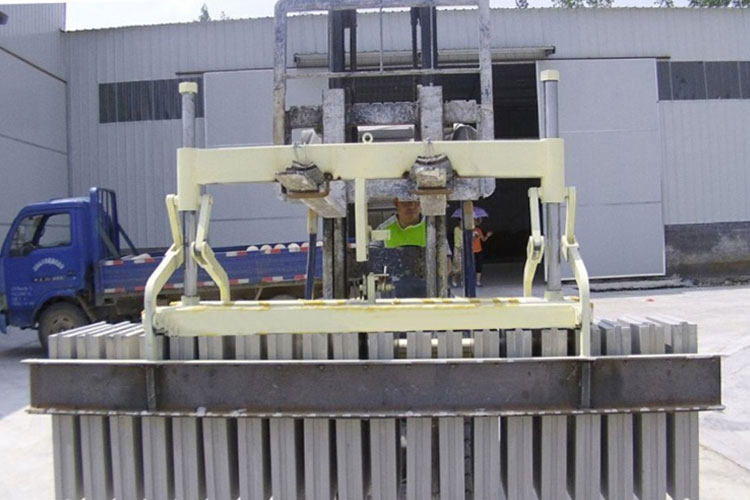

Space fixture jig

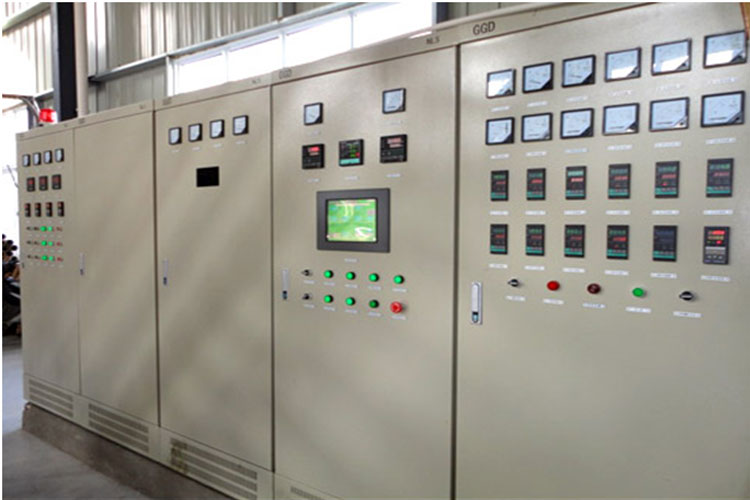

full automatic electric control system

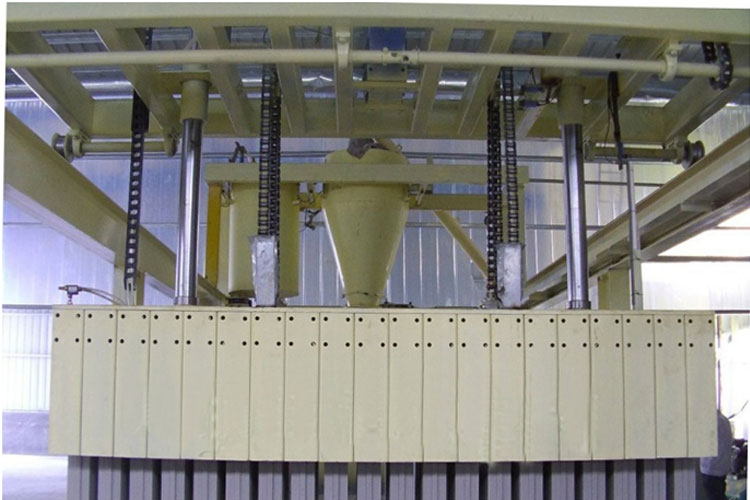

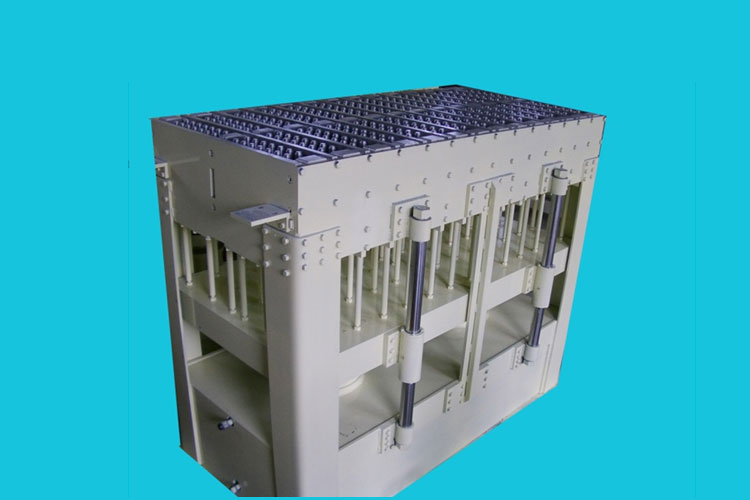

High accuracy moulding cavity
stacker manipulator

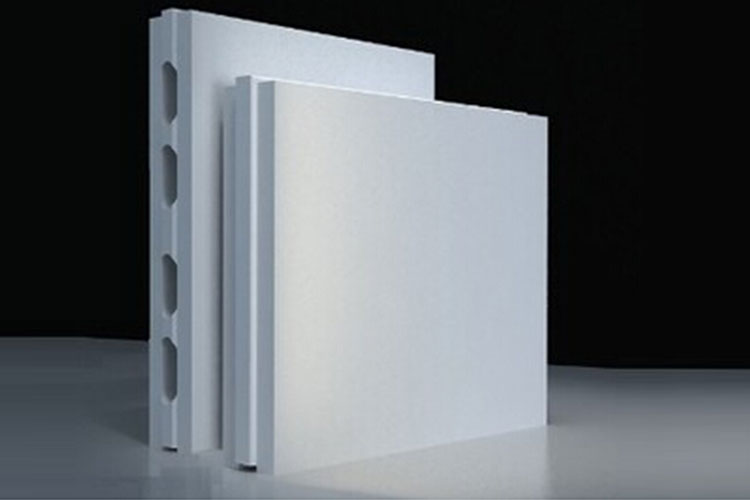

Gypsum block product

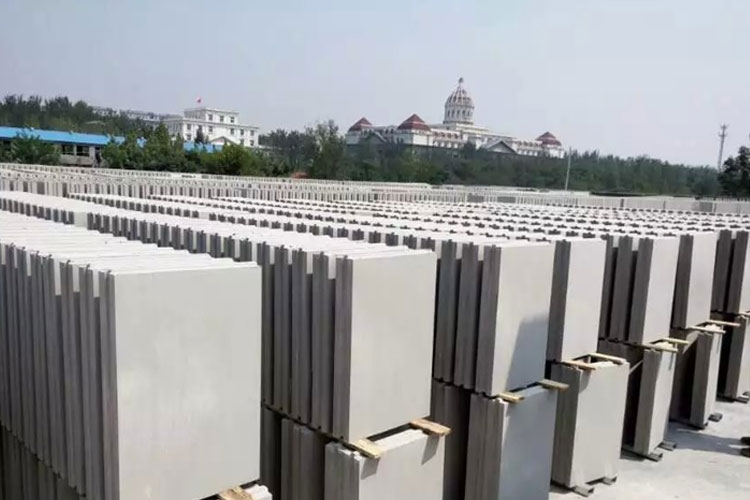

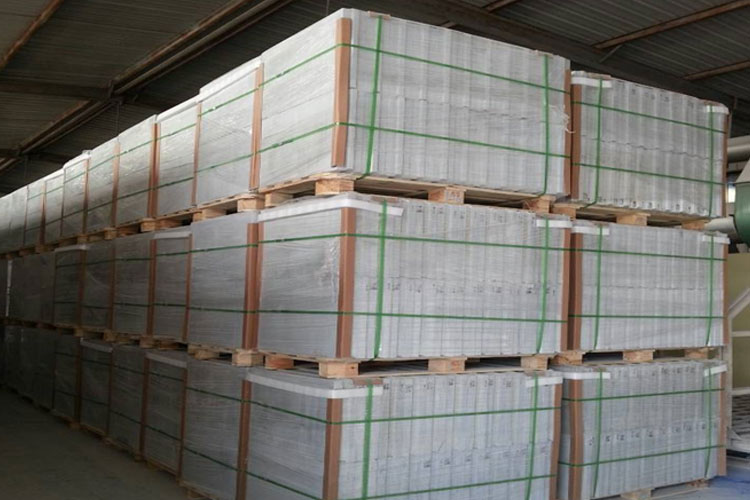

gypsum block product stacking yard

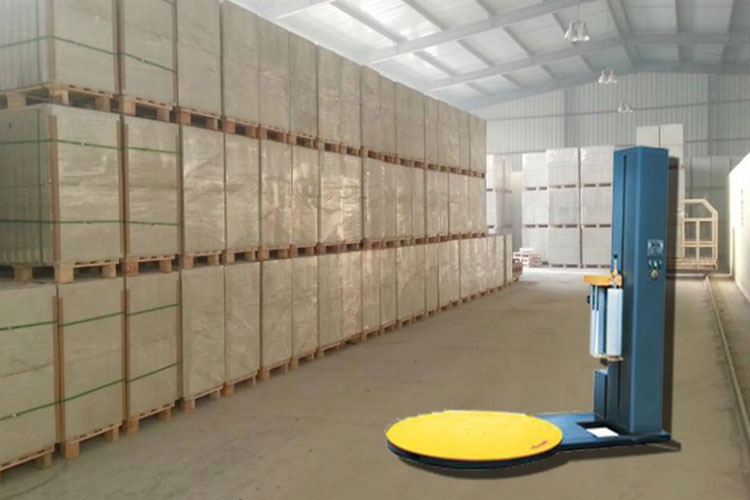

packing and stocking
ready for delivery
Pictures at site
Pictures at site
